Description

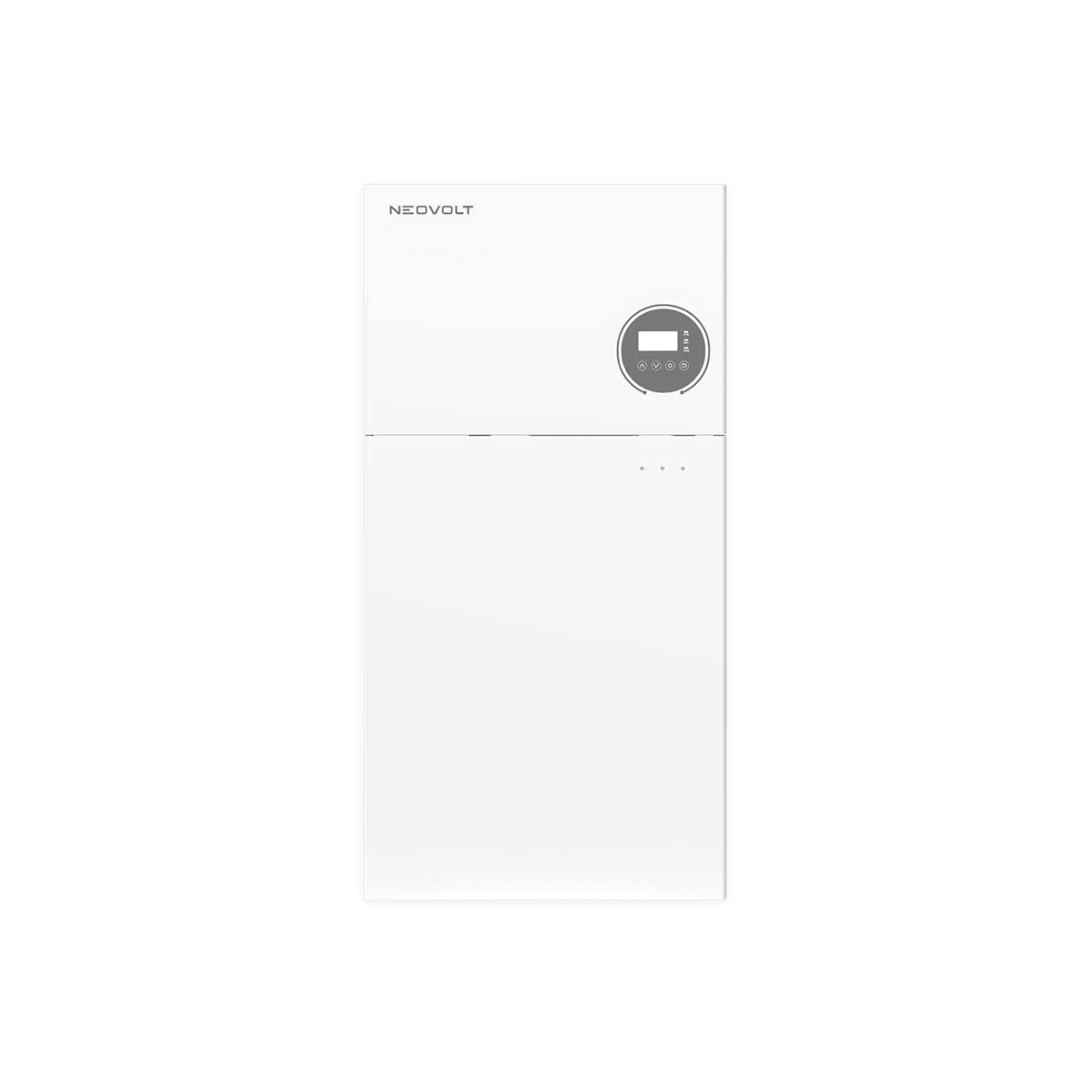

Neovolt white all in one with 9.6kWh APPLICATION
200% PV input
Max 10 kW PV input, 5 kW for Loads and 5 kW for Battery charging.
Grid forming function
On-grid PV inverters can still function normally during power outages.
Inverter parallel function
Up to 6 inverters can be connected in parallel, with all inverters sharing a group of batteries.
Battery sharing
All inverters share the battery modules, which balance the state of charge (SOC) for reaching the same.
Generator control
Automatic generator control with auto-start and state feedback. Local EMS+Cloud+APP control interface.
Load compatibility
Load monitoring accuracy of 10 W. Battery discharging threshold of 10 W. UPS-level control, compatible with inductive loads.
ENERGY STORAGE SYSTEM SUPERIOR PERFORMANCE
MAX.BATTERY EFFICIENCY 97.3%
MAX.SYSTEM EFFICIENCY 97%
01
Anti-backflow Function
Monitor and control accuracy of 10 W and Rapid power control of 100 ms.
02
Battery Awakening Function
Awakens shut-down battery from Grid or PV.
03
Natural Cooling
Equipped with natural cooling technology, with wide temperature tolerance and no internal fans, making the system noise-free.
04
High Voltage 96V Battery
Compatible with the latest BW high-voltage lithium-ion batteries.
05
Online Maintenance
Remote maintenance of the system is possible via smartphone or web portal.
06
IP65
Durable and Anti-corrosion cracking with maximum flexibility, and suitable for outdoor installation.
07
Expandable Batteries
Additional batteries can be added easily.
08
Easy Installation
Plug-and-play installation with built-in fuse protection.
09
Safety and Security
With EVE Tier 1 brand prismatic cells, similar to those used in vehicles, and features multiple hardware and firmware protection mechanisms.
Download:
Single Phase 3.6~5kW Inverter Datasheet
Single Phase 3.6~5kW ESS Datasheet
